Cocoon PFO Occluder
Extensive size matrix so that there is no compromise
6 SKUs
(vs 4 SKUs of the competitor)
5 out of 6 occluders are 8F sheath compatible
Softness to protect
2+ times softer at the rims
Designed to minimize nickel leaching
Platinum nanocoating
Extensive size matrix so that there is no compromise 6 SKUs (vs 4 SKUs of competitor)
Softness to Protect 2+ times softer at the rims
Displacement at 1.0 mm
Displacement at 1.5 mm
5 out of 6 occluders are 8F sheath compatible
5 out of 6 occluders are 8F sheath compatible
Designed to minimize nickel leaching Platinum nanocoating
- Ultrathin layer of Platinum atoms using nanofusion technology is coated on the Nitinol wire by a process called plasma deposition
- Platinum nanocoating makes the Cocoon Occluders inert, biocompatible, non-corrosive and non-allergic and also enhances radiopacity
Raw nitinol
Electropolished
Platinum nanocoating
Platinum nanocoating makes the Cocoon PFO Occluder:
Device Description
- Self-expanding, self-centering double disc device with unique Platinum nanocoating
- Device is filled with polypropylene fabric to assist thrombogenicity
- Ability to recapture and redeploy*

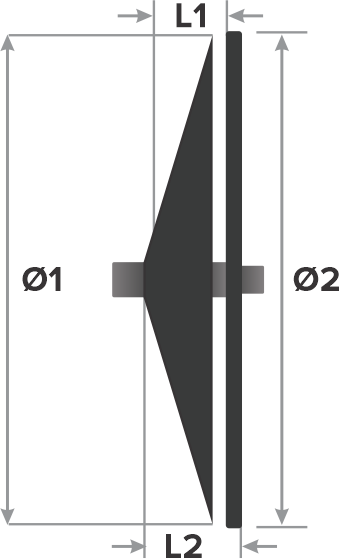

Design
- Right atrial disc diameter (Ø1)
- Left atrial disc diameter (Ø2)
- Waist length (L1)
- Total length (L2)
Technical Specifications
| Catalog number | Right atrial disc diameter (Ø1) (mm) | Left atrial disc diameter (Ø2) (mm) | Waist length (L1) (mm) | Total length (L2) (mm) | Sheath Size (F) | Cable Code |
|---|---|---|---|---|---|---|
| CPF18 | 18 | 18 | 3 | 5 | 8 | 6 |
| CPF25 | 25 | 18 | 3 | 5 | 8 | 6 |
| CPF2525 | 25 | 25 | 3 | 5 | 8 | 6 |
| CPF3025 | 30 | 25 | 3 | 5 | 8 | 6 |
| CPF30 | 30 | 30 | 3 | 5 | 8 | 6 |
| CPF35 | 35 | 25 | 3 | 5 | 9 | 6 |
Usable length (cm)
| 8F | 9F | |
|---|---|---|
| Sheath | 78 | 78 |
| Dilator | 83 | 83 |
| Loader | 10 | 12 |
Sizing recommendations
| Distance from defect to aortic root or SVC** (Consider shortest distance) | Suggested Cocoon PFO*** device size |
|---|---|
| Less than 9 mm | Do not implant |
| Between 9 and 12.4 mm | CPF18 |
| Between 12.5 and 14.9 mm | CPF25 |
| CPF2525 | |
| Between 15 and 17.4 mm | CPF3025 |
| CPF30 | |
| More or equal to 17.5 mm | CPF35 |
Delivery Cable
| Description | Profile (inch) | Length (cm) | Catalog Number |
|---|---|---|---|
| 6F Delivery Cable | 0.077 | 117 | CDC6F |
Preclinical Studies
Images from pre-clinical trials of closure device depicting neoendothelialization.Pigs were sacrificed at 36 and 42 days.
Caution
This product is intended for use by or under the direction of a physician. Prior to use, refer to the “Instructions for use” supplied with these devices for indications, contraindications, side effects, suggested procedure warnings and precautions. As part of our continuous product development policy, we reserve the right to change product specifications without prior notification. Information contained herein is for distribution outside the USA & Japan.
